“Simplifying the wean-to-finish gating system for new and rebuild barns by standardizing components, eliminating floor slat configuration errors, and eliminating the need for T- or Square posts. Reducing design and installations time and creating savings $$$.”
5
New!
BASIC-50 Barn Gate Calculator. WOW!
//////
New! BASIC-50 Barn Gate Calculator. WOW! //////
USA Hog Gates uses only 5 Fundamental Components!
Foot Post & Fixed Gates …
Latch & Swing Gates …, and
C-Brackets
Your Barn …
FREE! USA HOG GATES Kits Designed For You
Your Local and Preferred Fabricator
and Engineered USA Hog Gates Latch assemblies, Gate end caps, and FootPosts
FREE! Vertical Plates, C-Brackets, Tabs, and accessory parts .stp files.
FREE! Shop drawings
US Patent 11,564,372 and Patent Pending

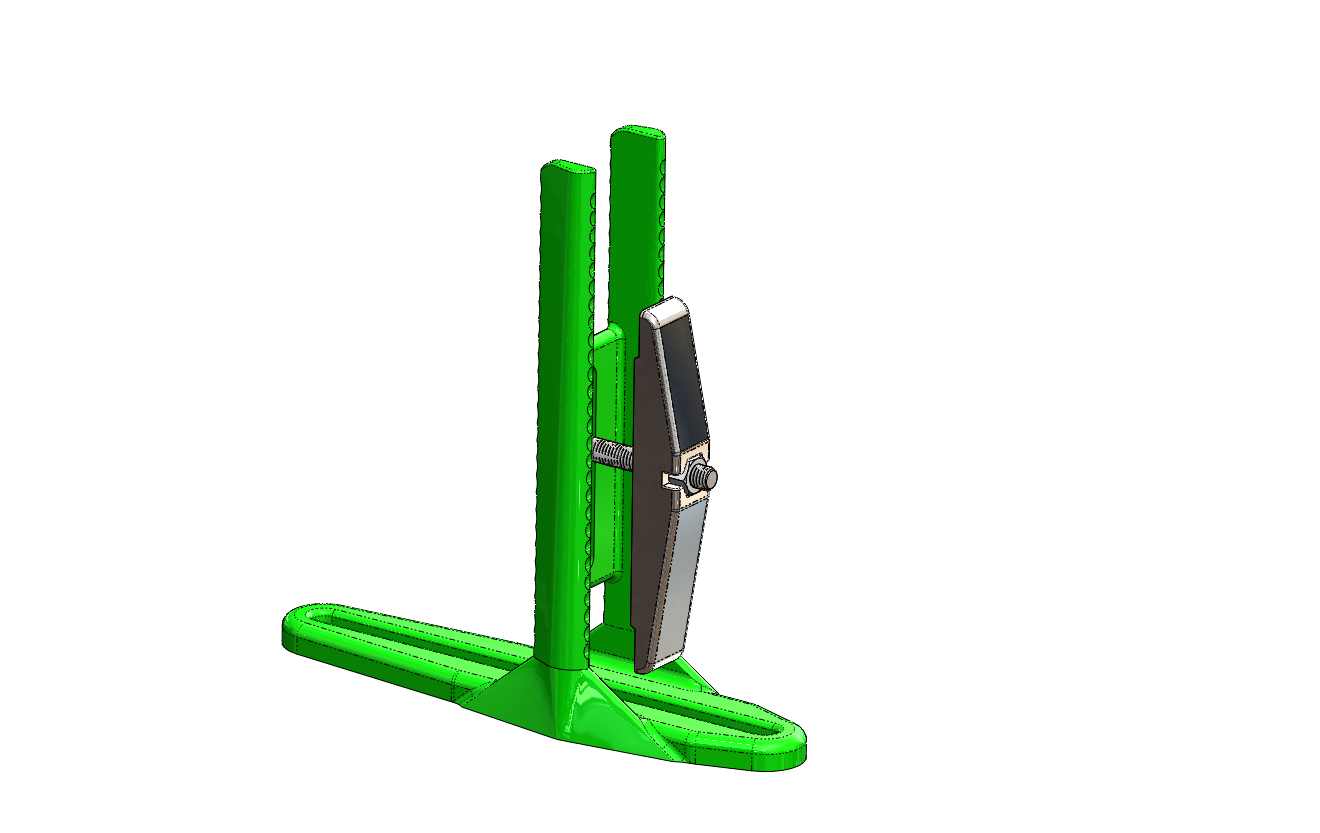

The FootPost …
Heavy Duty 8 lbs of ductile cast iron.
Mount anywhere along a Fixed Gate, EVEN around a vertical plate to maximize strength.
Multiple mounting positions, to either side of the gate or underneath.
3” of vertical positioning for uneven floors

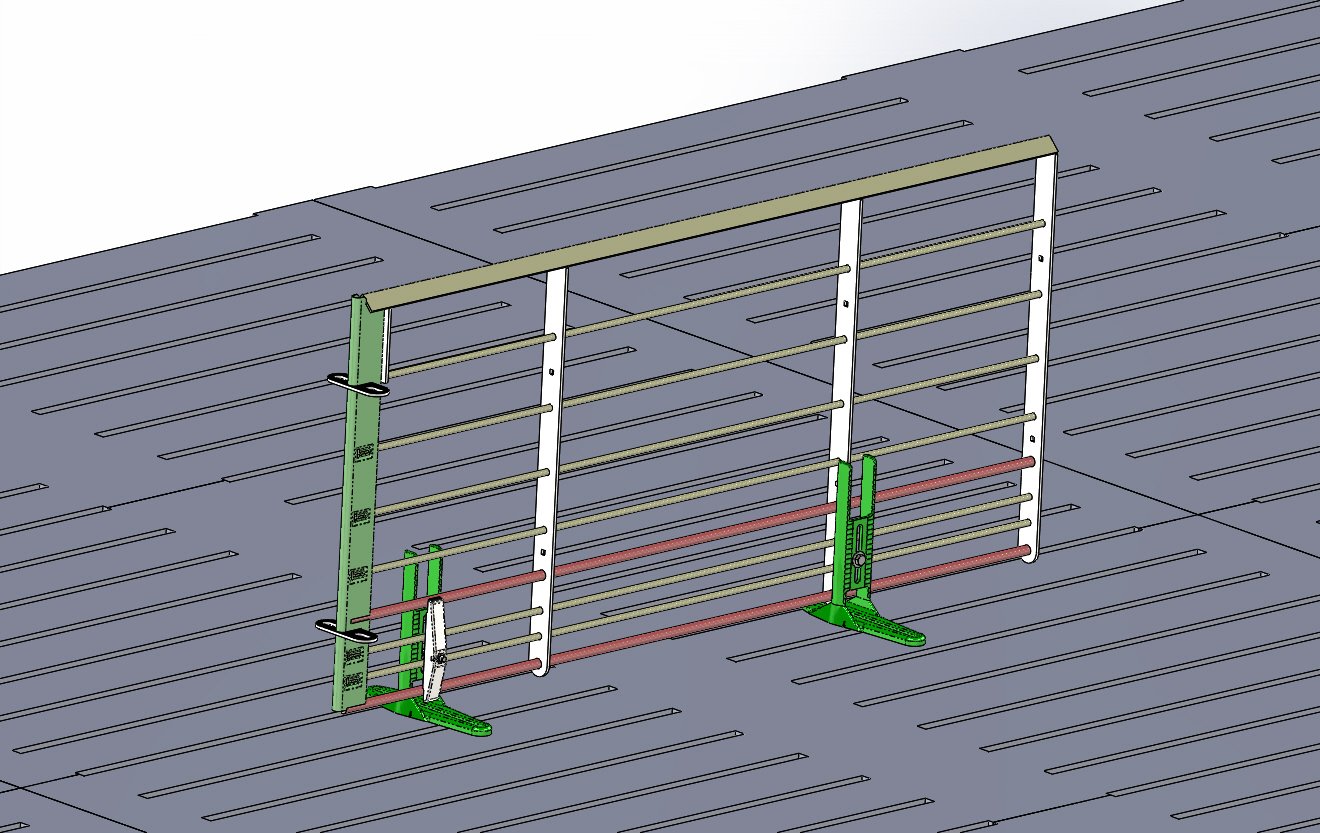

Fixed Gates …
34” Tall, 8-rod gates;
USA Hog Gates Two 3/4” bars (red) are the foundation for eliminating posts; and
Allowing Infinite positioning of the Patented FootPost.
and End Cap
Complete your gating package with end caps with Dual Slot, Dual Round, and Single Tab configuration.
Same construction as the latch.
14 Ga Stainless Steel
Formed rod receivers and stops simplify gate build.
Angle iron landing
3/4” Rod slots for welding
Strong and cleanable
The Latch …
Double-action latch/lock mechanism prevents accidental opening;
Stainless Steel Latch Channel and capture plates ensure long life;
Formed bar receptacles and welding slots;
Latch Channel Prevents wean pig movement by closing those troublesome gaps; and
Never lose a drop rod again.
Swing Gates.
Gates open at either end and swing both directions
Latched and locked
Unlatched and open

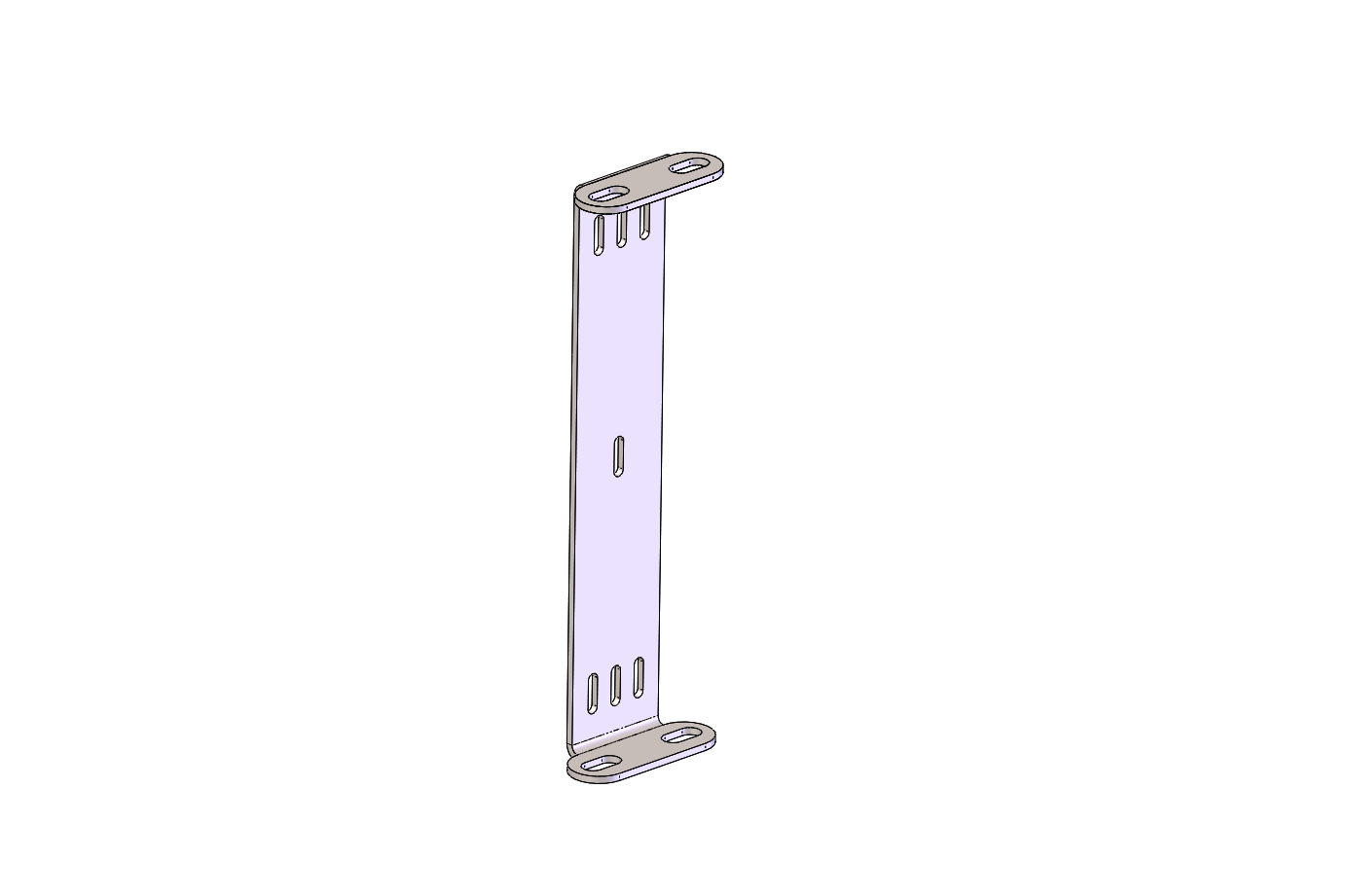

C-Brackets
Connecting the gates to walls, feeders, and other gate lines.
Single and Double configurations.
Download .stp files cut and form at a local manufacturer
Connect feeders with fixed gates, Latchs, and C-Brackets to the gate line. Secured and Easily removed for cleaning.
Swing Gate
Swing Gates and Latch ~ 34" Tall ~ 8 Bar ~ Stainless Steel Latch Assembly
LATCHED ~ Sectioned swing shows Trigger in the latched position
LATCHED ~ Section of latch assembly showing trigger in the locked position.
UNLATCHED ~ Trigger in lifted position allows the Drop Rod to be lifted and open gate
Latch Assembly captures gate bars in formed receptacles with stops and welding slots
Foot Post
